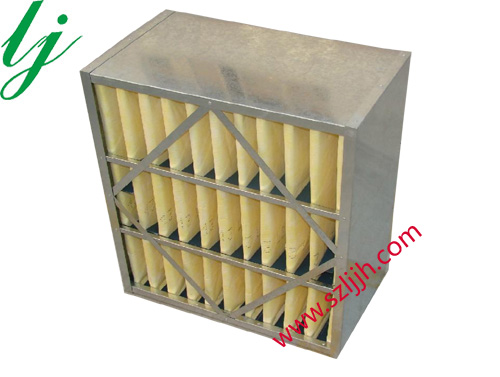

中效箱式空气过滤器
Effect of air filter box
特点 ：Features
●使用寿命长
●阻力小、风量较大
●容尘量大
●广泛运用于空调系统的中级过滤
●Long service life
●Small resistance, air is bigger
●Let the dust
●Widely used in air conditioning system
adopts the intermediate filtration
构成材料及运行条件
Materials and operating conditions
●框材：铝合金或镀锌板外框
●External frane：Aluminum alloy steel or frame
●分隔物：塑胶插片
●Space: plastic inserted
●覆网：铝网或镀锌网
●Reply: aluminum or galvanized mesh
●滤料材质：新型复合无纺布
●Filter material: new composite nonwoven fabric
●滤料颜色：F5(白色)45%（浅黄色）、F6(绿色)65%（桔红色）、
F7(粉红色)85%（紫色）、F8(浅黄色)95%（深黄色）
●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),
F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
●密封条：醋酸乙酯
●Gasket：EVA
●密封物：聚胺脂胶
●Sealant：Gel-glue
●使用最高温度、湿度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数
Standard specification
|
型号 model |
外形尺寸 Outside Dimensions (mm) |
额定风量 Rated air flow (m3/h) |
初阻力 Initial resistance(Pa) |
效率（级别） Efficiency (class) |
滤料颜色 Liao color |
折数 Fold number |
|
LJ-ZXD-13 |
495×295×295mm 20″×12″×12″ |
1300m3/h |
50Pa F5
55Pa F6
60Pa F7
65Pa F8
|
40-50% F5
60-70% F6
75-85% F7
85-95% F8 （比色法） colorimetric |
白色F5 White 绿色F6 Green 粉红F7 pink 浅黄F8 yellow |
8 |
|
LJ -ZXD-22 |
495×495×295mm 20″×20″×12″ |
2200m3/h |
10 |
|||
|
LJ -ZXD-16 |
595×295×295mm 24″×12″×12″ |
1600m3/h |
14 |
|||
|
LJ -ZXD-27 |
595×495×295mm 24″×20″×12″ |
2700m3/h |
14 |
|||
|
LJ -ZXD-32 |
595×595×295mm 24″×24″×12″ |
3200m3/h |
18 |
*可要据用户要求定制不同规格型号的过滤器
According to user requirements to customize different specifications and types of filter
